Front Crossbrace Bracket - Removal

REMOVAL

1. Raise and support the vehicle. Maintenance




2. Remove the two rear mounting bolts (2) securing the front crossmember (1) to the body.

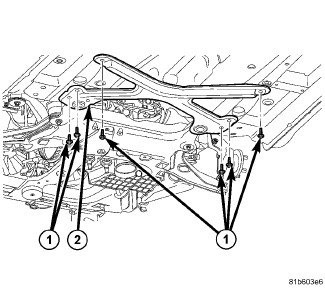

3. Remove the mounting screws (1) securing the front crossbrace/reinforcement bracket (2) to the body (1).
4. Remove the bracket.
