Positive Crankcase Ventilation (PCV) Valve - Removal

2.7L




The Positive Crankcase Ventilation (PCV) valve is located under the intake manifold on the right rear bank of the engine.

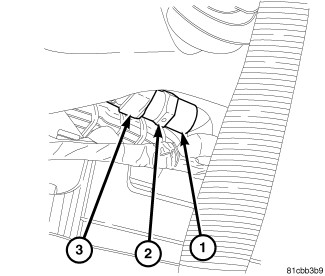

1. Remove positive crankcase ventilation (PCV) hose (3) from PCV valve (2).
2. Unscrew PCV valve (2) from valve cover (1).
