Installation

INSTALLATION





1. Install EVAP canister (1) mounting bolts and tighten.
2. Connect filter hose to canister (2).

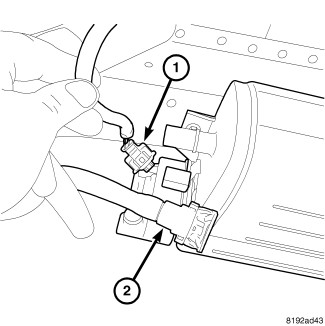

3. Connect electrical connector (1)
4. Connect hoses (2).
5. Lower vehicle.
6. Connect negative battery cable.
