Fog Lamp - Installation

LAMP





1. From the face of the front fascia, position the front fog lamp and bracket unit into the fascia seat.

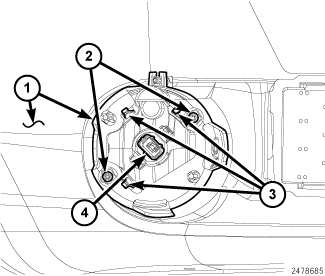

2. Engage the two alignment pins on the back of the fog lamp bracket with the alignment holes in the seat, then push the lamp rearward far enough to engage the three latch features (3) of the fog lamp bracket with the opening on the back of the front fascia seat (1).
3. Reach up behind the lower edge of the front fascia to install and tighten the two screws (2) that secure the lamp to the back of the fascia. Tighten the screws securely.
4. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb connector receptacle (4).
5. Reinstall the front lower fascia closeout panel. Front Lower Fascia Closeout - Installation.
6. Reconnect the battery negative cable.
7. Confirm proper front fog lamp alignment. Adjustments.
