Lamp Unit Lens

LAMP UNIT LENS





1. Disconnect and isolate the battery negative cable.
2. Open decklid.
3. Remove socket from CHMSL unit (2).
4. Remove screws (1) attaching CHMSL unit (2) to decklid (4).
5. Remove CHMSL unit (2) from decklid (4).

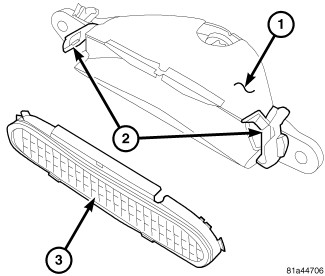

6. Using a trim stick or equivalent, gently pry the lens (3) off at either end (2) of the CHMSL unit (1).
