Chrysler Models

CHRYSLER MODELS

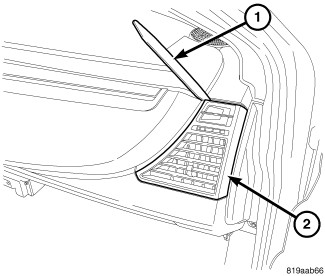

NOTE: LHD passenger instrument panel air outlet shown. RHD and other instrument panel air outlets similar.






NOTE: Make sure that the air outlet(s) are properly aligned to the instrument panel duct(s).

1. If servicing an outboard air outlet (2), align the outlet to the duct in the opening of the instrument panel and engage the retaining clips. Make sure the retaining clips are fully engaged.
2. If servicing a center air outlet, install the outlet onto the center bezel and engage the retaining clips, then reinstall the center bezel Instrument Panel Bezel - Installation.
