Beverage Cooler

BEVERAGE COOLER

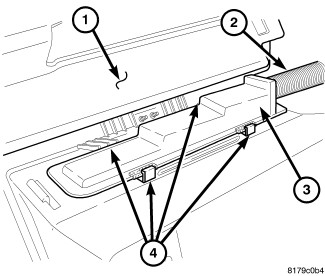

NOTE: LHD model shown. RHD model similar.





1. Position the beverage cooler outlet (3) to the top of the storage bin and engage the four retaining tabs (4). Make sure the tabs are fully engaged.
2. Connect the hose (2) to the beverage cooler outlet.
3. Install the instrument panel top cover (1) Instrument Panel - Installation.
