Valve Guide Seals - Installation






INSTALLATION

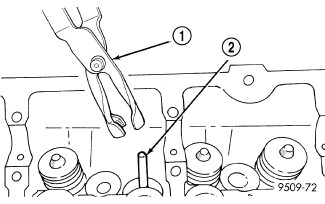

1. The valve stem seal/valve spring seat should be pushed firmly and squarely over the valve guide using the valve stem as guide. Do Not Force seal against top of guide.
2. Install valve spring. Valve Springs - Installation.
