Front Crankshaft Oil Seal - Removal






REMOVAL










1. Remove crankshaft vibration damper. Vibration Damper - Removal

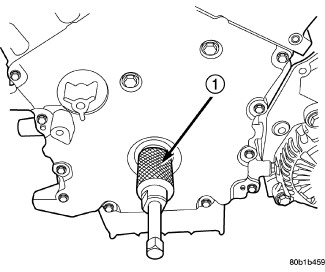

2. Install Special Tool 8194, Insert into crankshaft nose. Remove seal using Special Tool 6771, Remover (1).
