Front Crankshaft Oil Seal - Installation






INSTALLATION

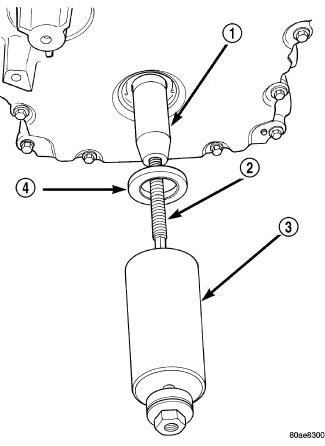

1. Install new seal using Special Tools 6780-2 Sleeve, 6780-1 Installer, and 8179 Stud (2).
2. Install crankshaft vibration damper. Vibration Damper - Installation.
