Engine Lubrication - Operation
OPERATION

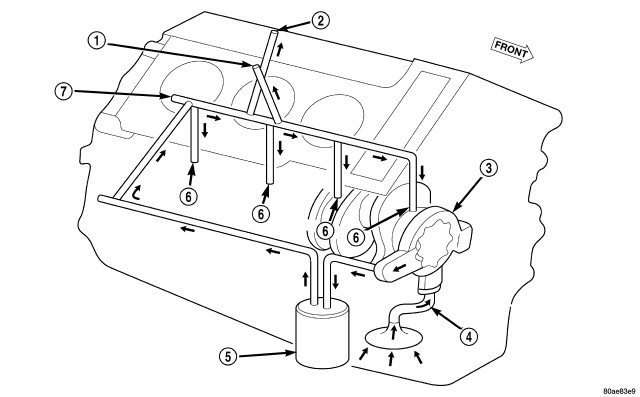

Oil from the oil pan is pumped by a geroter type oil pump (3) directly coupled to the crankshaft. Oil pressure is controlled by a relief valve mounted inside the oil pump housing.
OPERATION
Oil from the oil pan is pumped by a geroter type oil pump (3) directly coupled to the crankshaft. Oil pressure is controlled by a relief valve mounted inside the oil pump housing.
