Hydraulic Lifter - Removal

REMOVAL

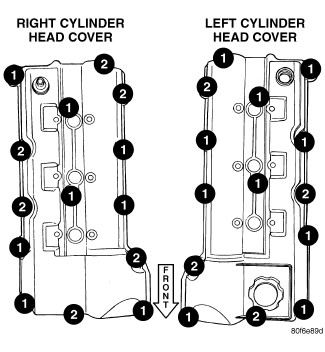

1. Remove the cylinder head cover(s) Cylinder Head Cover(s) - Removal.
2. Remove the rocker arm(s) Valve Rocker Arm - Removal.

CAUTION: If lash adjusters and rocker arms are to be reused, always mark position for reassembly in their original positions.

3. Remove lash adjuster(s).
