Hydraulic Lifter - Installation






INSTALLATION










1. Install hydraulic lash adjuster making sure adjusters are at least partially full of oil. This can be verified by little or no plunger travel when lash adjuster is depressed.
2. Install the rocker arm(s) Valve Rocker Arm - Installation.

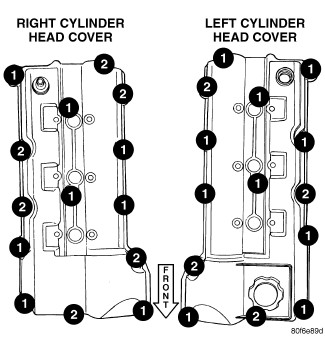

3. Install the cylinder head covers Cylinder Head Cover(s) - Installation.
