Coolant Outlet Housing - Installation

2.7L










1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.

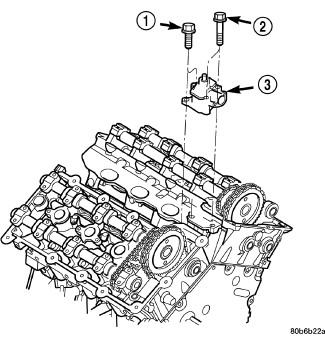

2. Install coolant outlet connector and tighten bolts to 12 Nm (105 in. lbs.).
3. Connect hoses at coolant outlet connector.
4. Connect engine coolant temperature sensor connector.
5. Install upper intake manifold Intake Manifold - Installation.
6. Fill cooling system Service and Repair
