Pinout Values and Diagnostic Parameters
CONVERTIBLE TOP
OPERATION SWITCH AND SENSOR STATES

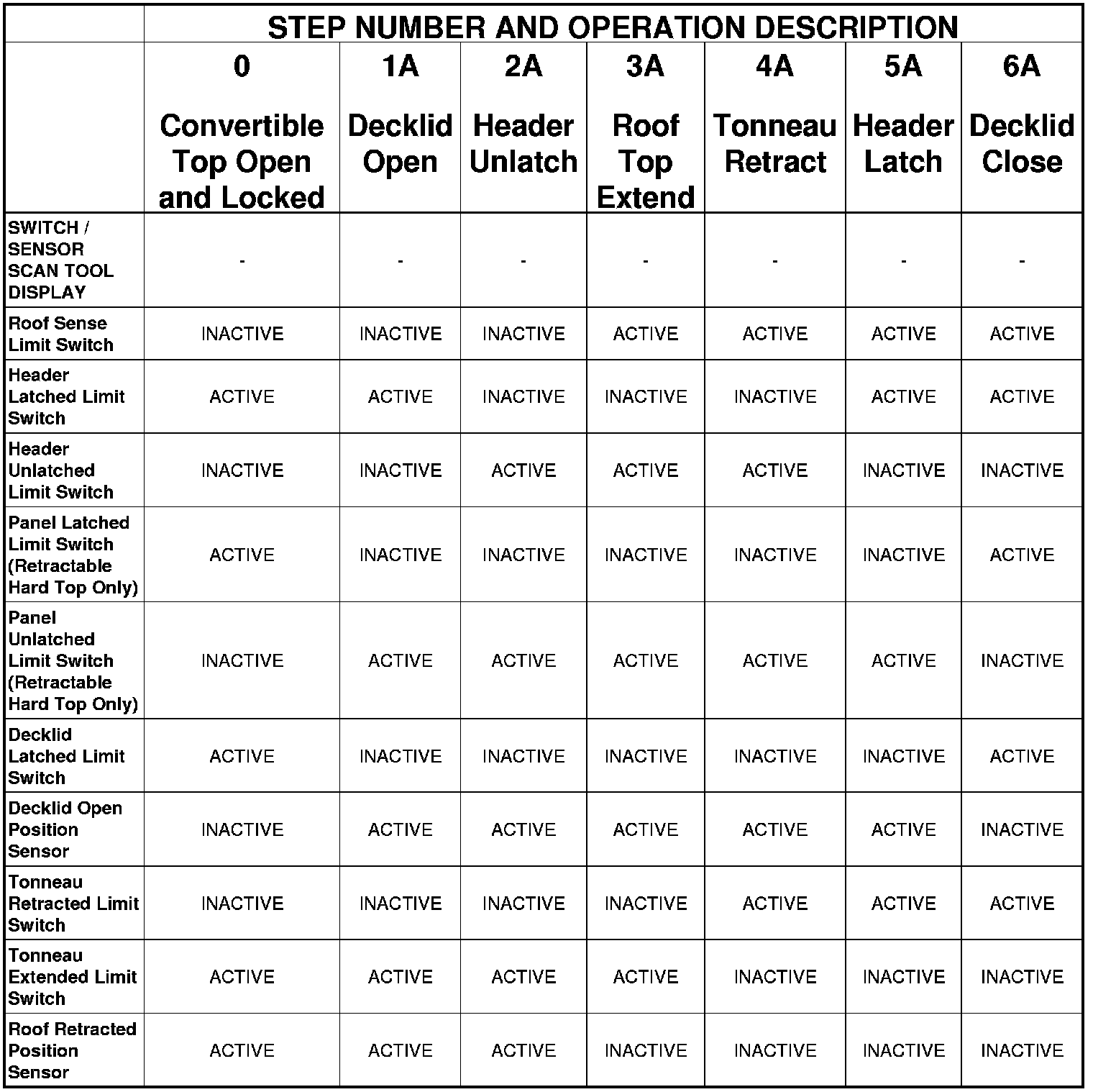

RETRACTING TOP (OPENING)

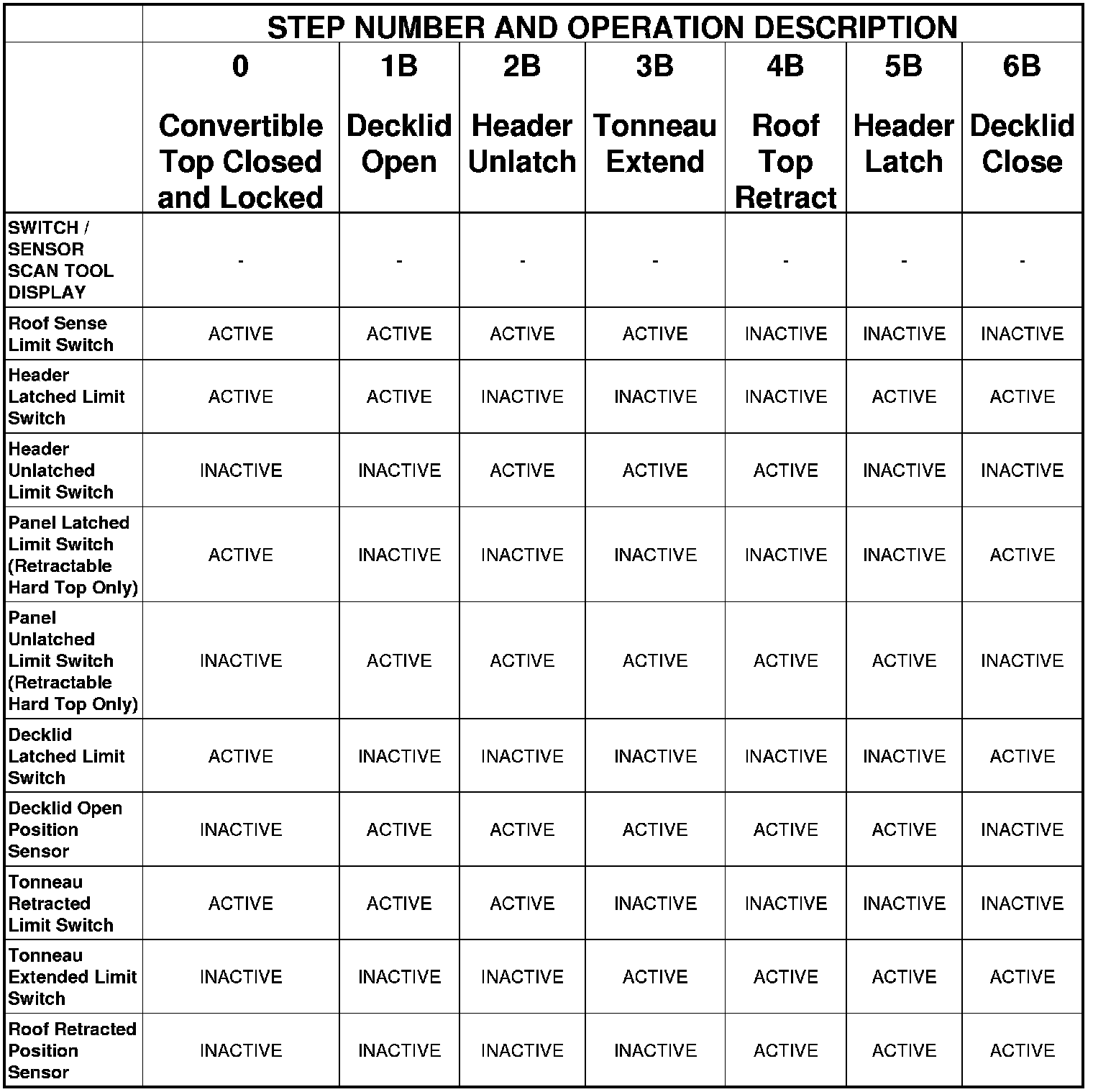

EXTENDING TOP (CLOSING)
