Center Down Capture





CENTER DOWN CAPTURE

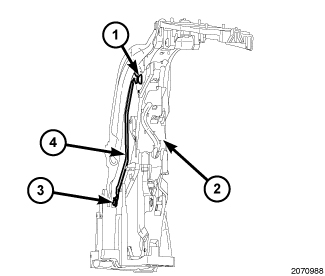

1. Place the down capture assembly (4) into position on the convertible top.
2. Install the screw (1) securing the top of the assembly to the center rail (2).
3. Install the pin and clip (3) at the bottom of the assembly.
4. Install the center rail trim.
5. Install the mid/rear headliner Convertible Top Headliner - Installation.
