Cover - Installation





INSTALLATION

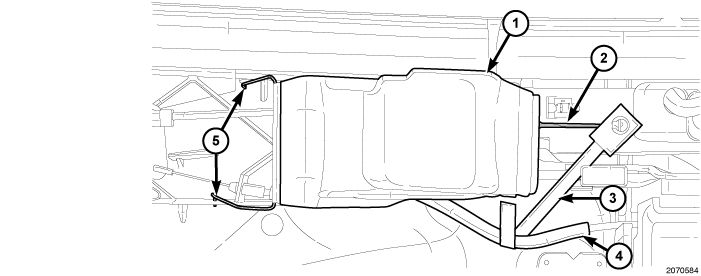

1. Place the hinge cover (1) into position on the side rail.
2. Engage the front retainers (5) to the side rail by squeezing together.
3. Route the strap (3) as shown and secure it with the rear retainer (2) to the side rail.
4. Install the front and mid/rear headliners. Convertible Top Headliner - Installation.
