Moab Bracket - Installation

INSTALLATION

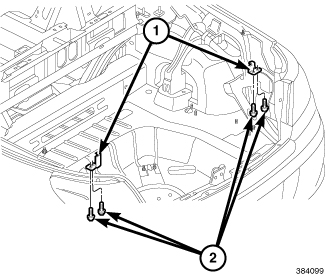

1. Position the MOAB bracket (2) in place and install the two bolts (1). Tighten fasteners to 14 N-m (10 ft. lbs.).
2. Install the rear and side trunk trim panels. Trunk Trim Panel - Installation.
3. Close the decklid.
4. Cycle the top to the retracted position and complete cycle.
5. Open the decklid conventionally.
6. Lift up on the front panel and verify no or minimal movement.
7. Close the decklid.
8. Cycle the top to the extended position and verify the top does not bind on the MOAB bracket.
