Front Panel Bumper - Installation





INSTALLATION

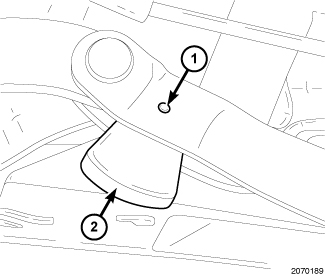

1. Place the bumper (2) to the convertible top side rail.
2. Install the retaining pin (1) that secures the bumper.
3. Install the hinge covers, RHT only.
4. Install the headliner(s). Convertible Top Headliner - Installation.
