Convertible Top Chime - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Raise vehicle on a hoist, Maintenance.

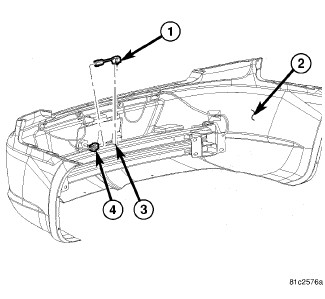

3. Disconnect the power folding top chime electrical connector (4).
4. Remove the chime (1) by disengaging the push in retainer from the mounting hole (3) in the rear bumper (2) reinforcement.
