Latch Receiver - Installation

INSTALLATION





1. Place the receiver into position using the marks made during removal.

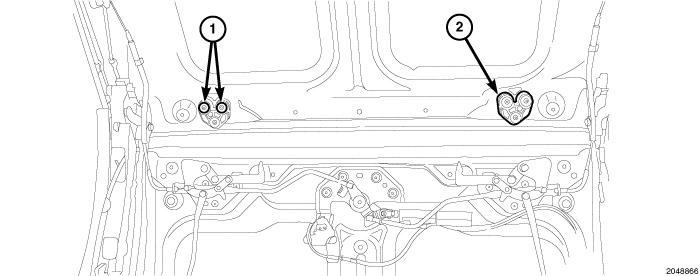

2. Install the three fasteners (1) securing the receiver (2) to the front panel.
3. Install the front headliner. Convertible Top Headliner - Installation.
4. Cycle the top and verify operation.
