Convertible Top Header Latch Striker Plate - Removal






REMOVAL





1. Open top and put in the vertical position.
2. Remove the front headliner. Convertible Top Headliner - Removal.

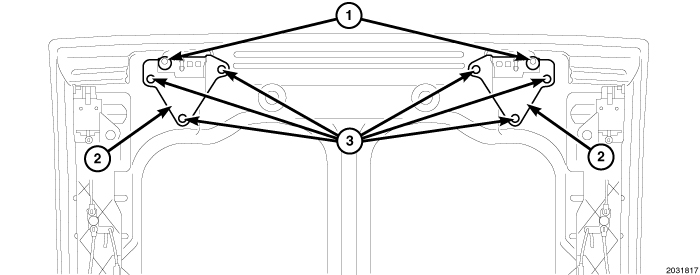

3. Remove the striker plate mounting fasteners (3).
4. Remove the striker plate (2) from the convertible top.
