Convertible Top Header Latch Striker Plate - Installation

INSTALLATION

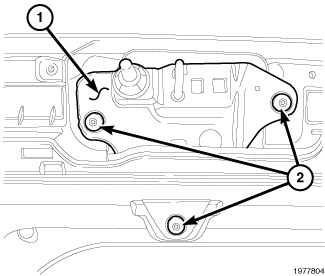

1. Position the striker plate and loosely install fasteners.
2. Close and latch the top.
3. Tighten two fasteners to 15 N-m (11 ft. lbs.).
4. Open top to the vertical position.
5. Tighten remaining fastener to 15 N-m (11 ft. lbs.).
6. Position the headliner at the header casting and secure the "J" strip.
7. Install the header trim panel. Header Trim - Installation
8. Close and latch the convertible top.
