Header Latched

REMOVAL





1. Open the power folding top so that the header latches are fully disengaged.
2. Disconnect and isolate the battery negative cable.
3. Remove the folding top header latch motor, Folding Top Latch Motor - Removal.

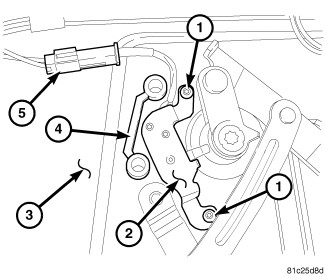

4. Disconnect the folding top header latched switch electrical connector (5).
5. Using an 1/8 in. drill bit, drill out the rivets (1) securing the switch (2) to the presenter plate (3).
6. Separate the switch (2) from the presenter plate (3).
