Rear Grab Handle - Removal






REMOVAL






NOTE: If replacing the inside handle, transfer the window switch (if equipped) Power Window Switch - Removal .

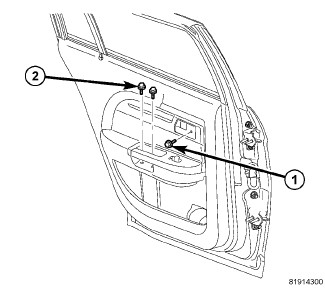

1. Remove three screws to handle, one under the handle and two hidden beneath a trim panel inside handle (2).
2. Pull handle up from trim panel.
3. Disconnect the window switch (if equipped).
