Decklid Latch - Installation

INSTALLATION

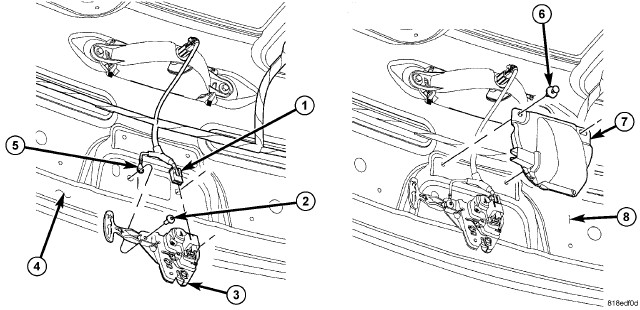

1. Position decklid latch (3) on vehicle.
2. Align decklid latch to marks made previously on decklid.
3. Install bolts (2) attaching decklid latch (3) to decklid (8). Tighten bolts to 12 Nm (106 in. lbs.).
4. Connect wire connectors to remote release solenoid, if so equipped.
5. Verify fit of decklid to deck panel (8) and decklid latch operation. Adjust as necessary.
