Hood Hinge - Removal

REMOVAL





1. Support hood on the side that requires hinge replacement.
2. Mark hinge attachment locations with a grease pencil or other suitable device to aid installation.
3. Remove cowl coverCowl Panel Cover - Removal.

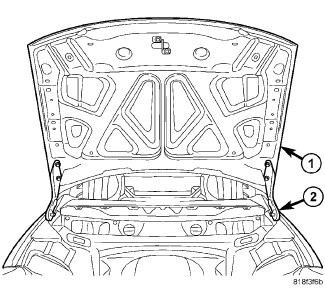

4. Remove bolts (3) attaching hood to hinge (4).





5. Remove bolt (2) attaching hood hinge to load beam inner and remove hinge from vehicle.
