Front Door - Removal

REMOVAL

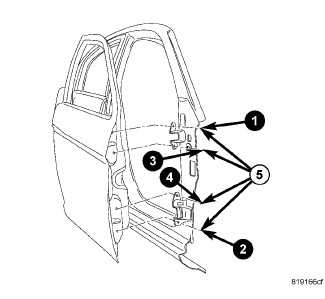

NOTE: Front door shown, rear door similar.

1. Open and support door on a suitable lifting device.
2. Mark hinges attachment locations with a grease pencil or other suitable device to aid installation.
3. Disengage wire connector at hinge A-pillar.
4. Remove the nuts (5) attaching the door to the door hinges and remove the door from the vehicle.
