Front Bumper Reinforcement - Removal

REMOVAL





1. Remove front fascia Front Bumper Fascia - Removal.

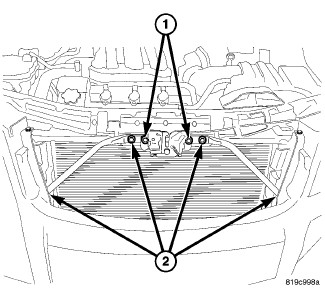

2. Remove hood latch fasteners (1) and move hood latch out of way.
3. Remove left and right brace fasteners (2) and braces.
4. Remove left and right horn fasteners and horn Horn - Removal.
5. Remove ambient temperature sensor from bumper reinforcement Ambient Temperature Sensor - Removal.

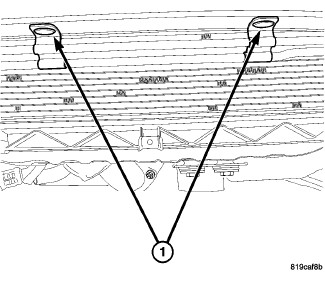

6. Remove coolant lines push pins from bumper reinforcement.

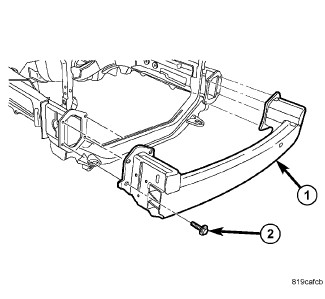

7. Remove bumper reinforcement fasteners and bumper from vehicle.
