Ignition Coil - Removal

2.0, 2.4L






NOTE: Prior to removing coil, spray compressed air around coil top to make sure no dirt drops into the spark plug tube.

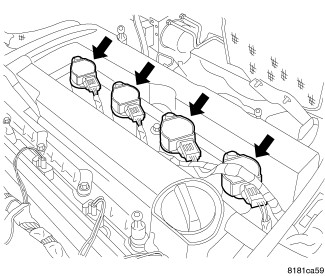

The electronic ignition coil attaches directly to the valve cover.

1. Remove the negative battery cable.
2. Disconnect electrical connector from ignition coil.

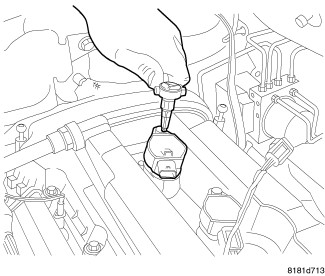

3. Remove ignition coil mounting bolts.

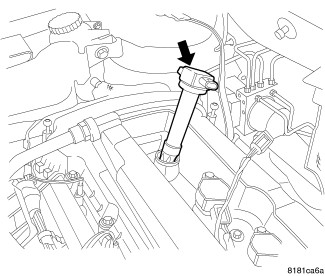

4. Remove ignition coil.
