Power Steering Belt

REMOVAL










1. Raise and support vehicle.
2. Remove right front inner wheel splash shield.
3. Use a socket and ratchet to rotate the crankshaft clockwise.

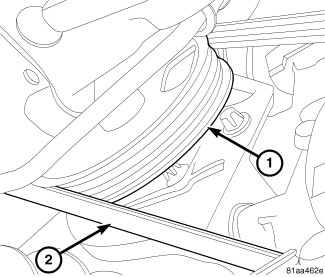

4. While rotating the crankshaft clockwise, walk the power steering drive belt (2) off of the power steering pulley (1).
5. Remove the power steering drive belt (2).
