Grille - Removal
Grille - Removal

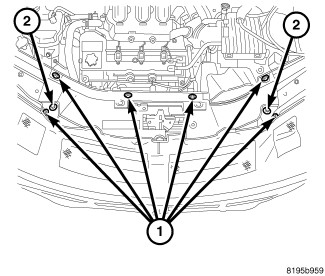

REMOVAL
1.
Remove air box.
2.
Remove push pins (1).
3.
Remove fasteners (2).
4.
Remove closure panel from vehicle.
