Hood Latch - Installation

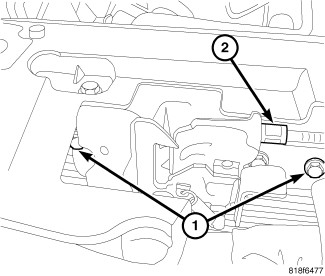

INSTALLATION





1. Engage remote release cable into hood latch.
2. Position hood latch on vehicle.
3. Install nuts attaching hood latch onto upper radiator support crossmember.
4. Tighten all nuts to 28 Nm (20 ft.lbs.) torque.
5. Verify operation. Adjust as necessary.
