CYLINDER, Glove Box Lock: Removal: Removal

Fig 1: Lock-Glove Box Remove 1

Courtesy of CHRYSLER LLC

Remove the glove box latch (1) from the glove box door and place it on a workbench. See Body/Instrument Panel/LATCH, Glove Box Door - Removal .

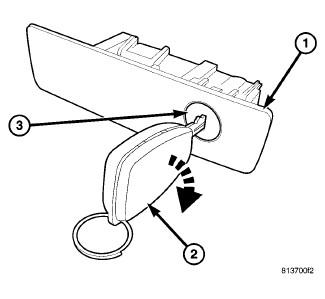

Insert the ignition key (2) into the glove box lock cylinder (3) and rotate the ignition key 90 degrees clockwise.

Fig 2: Lock-Glove Box Remove 2
Courtesy of CHRYSLER LLC

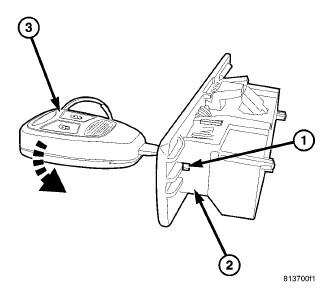

Using a small pointed tool, press in on the lock pin (1) showing through the opening in the glove box latch housing (2) and rotate the ignition key (3) an additional 45 degrees clockwise.

Fig 3: Lock-Glove Box Remove 3
Courtesy of CHRYSLER LLC

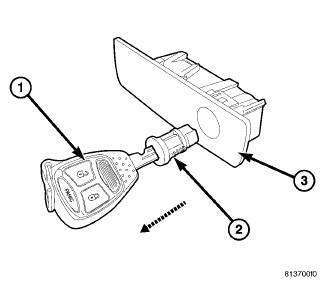

Pull the ignition key (1) and the glove box lock cylinder (2) out of the glove box latch (3) as an assembly.

Fig 4: Tumblers-Glove Box Lock R and I
Courtesy of CHRYSLER LLC

NOTE: For reinstallation purposes, when removing the tumblers from the glove box lock, be sure to make note of the location of each tumbler within the lock cylinder.

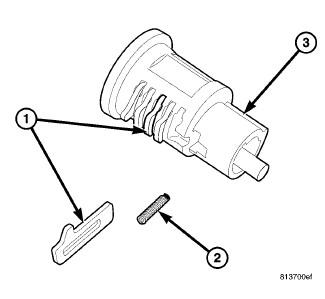

If required, remove the tumblers (1) and the springs (2) from the glove box lock cylinder (3). Note the location of each tumbler within the lock.
