Gap and Flush: Specifications: Coupe

INDEX

DESCRIPTION	FIGURE
BODY GAP AND FLUSH	Fig 1

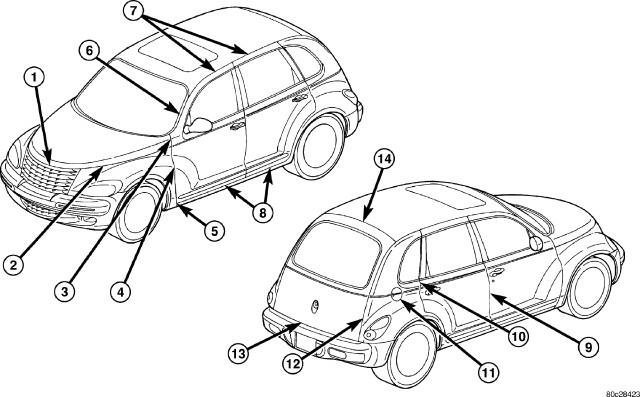

Fig 1: BODY GAP AND FLUSH - COUPE

Courtesy of CHRYSLER LLC

COUPE

DIMENSION	LOCATION	GAP	FLUSH
1	Hood to Grille	// within 2.0	Grille Ends 5.0
			Grille Center 7.0
			Under flush ± 1.5
2	Hood to Fender	6.0 ± 1.0 // 1.0	Fender Front Overflush 1.5 ± 1.0
			Fender middle AND Rear ±1.0
			Consistent Within 1.0
3	Hood tp Door	5.0 ± 1.0 // 1.0	± 1.5 Consistent within 1.0
4	Front Door to Fender	5.0 ± 1.0 // 1.0	+ 0,5 - 1.5 Lower Area Underflush 1.0 ± 1.0 Consistent within 1.0
5	Fender to Sill	4.5 ± 1.5 1.0	± 1.0
6	Front Door to Windshield Molding (A-Pillar)	5.0 ± 1.75 // 1.0	± 1.0 Consistent Within 1.0
7	Front AND Rear Door to Door	6.0 ± 1.5 // 1.0	Overflush 2.0 ± 2.0 // 1.5
8	Front AND Rear Door to Sill	6.0 ± 1.5 // 1.0	Underflush 1.0 ± 1.0
9	Front Door to Rear Door	4.5 ± 1.0 // 1.0	Excluding Door Header ± 1.5
			Door Header ± 1.0
			Front Door Lower Area Overflush 1.0 ± 1.0 Consistent Within 1.0
10	Rear Door to Body Side	4.5 ± 1.0 // 1.0	± 1.0 Consistent Within 1.0
11	Body Side to Fuel Door	3.0 ±1.0 Consistent Within 1.0	Body Side 0.5 Overflush ± 0.75
12	Liftgate to Body Side	4.0 ± 1.0 // 1.0	Liftgate Underflush 1.0 ± 1.0 Consistent Within 1.0
13	Liftgate to Rear Fascia	7.0 ± 1.5 // 1.5	N/A
14	Liftgate to Roof	8.0 1.5 // 1.5 ±	Liftgate Underflush 1.0 + 1.0 - 2.0 Consistent Within 1.5
NOTE: ALL MEASUREMENTS ARE IN mm.
