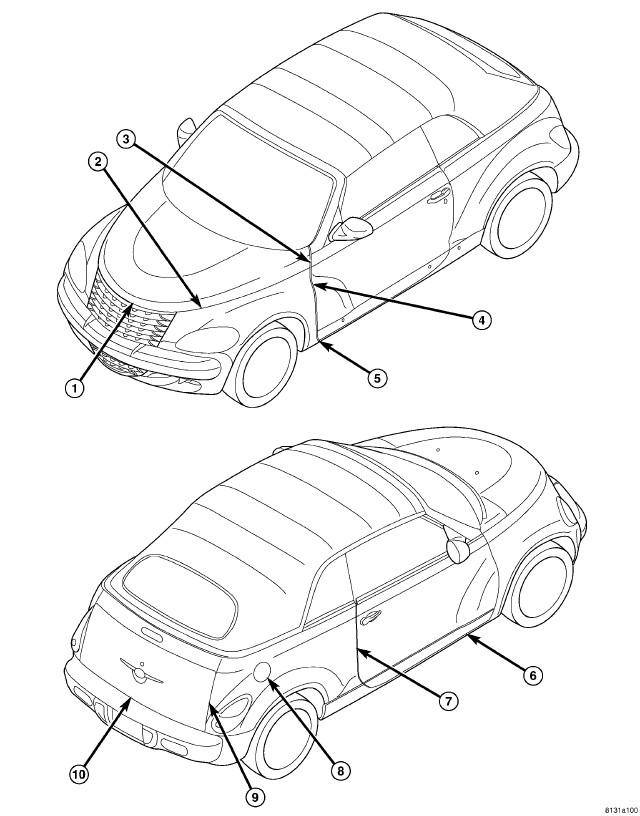

Gap and Flush: Specifications: Convertible
NOTE:
Note: all measurements are in mm.
| DIMENSION | LOCATION | GAP | FLUSH |
|---|---|---|---|
| 1 | Hood To Grille | Parallel Within 2.0 | Grille Ends 5.0 |
| Grille Center 7.0 | |||
| Underflush ± 1.0 | |||
| 2 | Hood To Fender | 6.0 ± 1.0 Parallel Within 1.0 | Fender Front Overflush 1.5 ± 1.0 |
| Fender Middle AND Rear ± 1.0 | |||
| Consistent Within 1.0 | |||
| 3 | Hood To Door | 5.0 ± 1.0 Parallel Within 1.0 | ± 1.5 Consistent Within 1.0 |
| 4 | Front Door To Fender | 5.2 ± 1.0 Parallel Within 1.0 | +0.9 Lower Area Underflush 1.0 ± 1.0 Consistent Within 1.0 |
| 5 | Fender To Sill | 4.5 ± 1.5 Parallel Within 1.0 | ± 2.0 Never Underflush |
| 6 | Front Door To Sill | 6.0 ± 1.5 Parallel Within 1.0 | Underflush 1.0 ± 1.0 |
| 7 | Door To Body Side | 4.5 ± 1.0 Parallel Within 1.0 | ± 1.0 Consistent Within 1.0 |
| 8 | Body Side To Fuel Filler | 3.0 ± 1.0 Consistent Within 1.0 | Body Side 0.5 Overflush ± 0.75 |
| 9 | Decklid To Body Side | 4.0 ± 1.0 Parallel Within 1.0 | Decklid Underflush 1.0 ± 1.0 Consistent Within 1.0 |
| 10 | Decklid To Rear Fascia | 7.0 ± 1.5 Parallel Within 1.0 | N/A |
