Washer Hoses and Tubes - Removal






REMOVAL





For damaged or plugged windshield washer hose, remove the affected piece of hose and replace with bulk hose. It may be necessary to de-trim part of the vehicle to access damages hose.

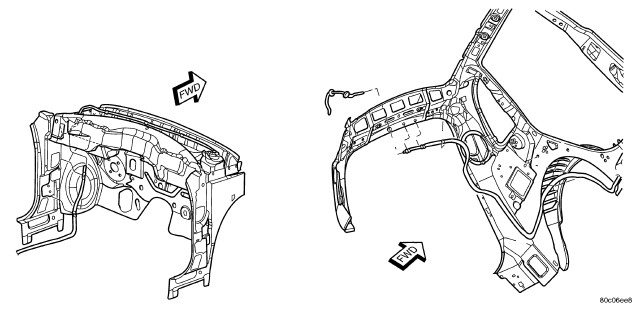

1. It may be necessary to de-trim parts of the interior to locate the problem portion of hose. Refer to Body, Interior component Removal and Installation.

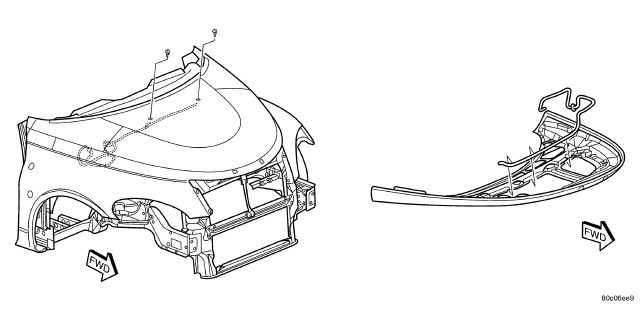

2. It may be necessary to de-trim parts of the hood/engine compartment to locate the problem portion of hose.
