Inner Belt Stabilizer - Removal

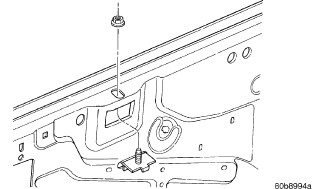

REMOVAL





1. Remove door trim panel.
2. Remove nut attaching inner belt stabilizer to door panel.
3. Remove inner belt stabilizer from door.
