Rear Door Glass - Installation

INSTALLATION

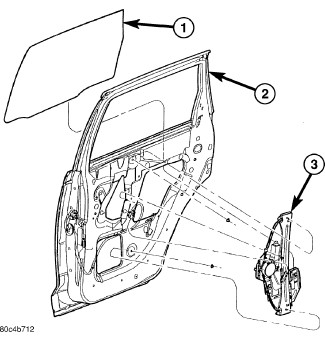

1. Lower door glass (1) through opening in top of door and into position in the window regulator (3).
2. Raise window glass (1) and regulator (3) to full up position.
3. Tighten screws attaching window regulator (3) to glass.
4. Install lower belt brackets.
5. Install inner door belt door trim panel and inner belt weatherstrip.
6. Install outer belt weatherstrip.
7. Operate window and check for interference. Adjust glass as necessary.
