Front Door Glass - Removal

COUPE










1. Remove door trim panel and water dam.
2. Remove inner door belt weatherstrip.
3. Lower door glass to bottom of door to gain access to attaching bolts.
4. Loosen bolts attaching door glass to window regulator lift plates.

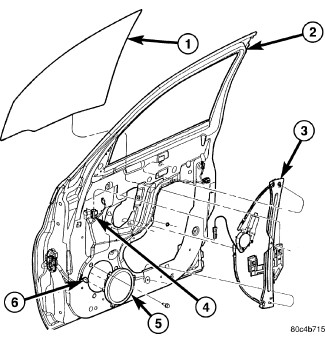

5. Disengage door glass (1) from regulator (3).
6. Lift door glass (1) upward, tilting down at the front and up at the back, out of the opening at the top of door.
