Front Door Glass - Installation

COUPE

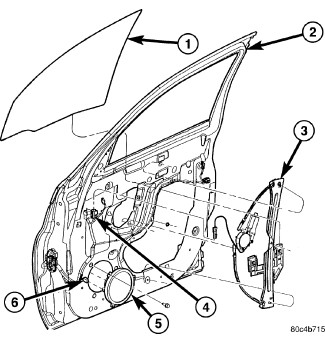

1. Carefully lower door glass (1) through opening in top of door.
2. Position door glass (1) into window regulator lift plates.
3. Install bolts door glass to lift plates and do not tighten.
4. Raise glass to the full up position and then tighten the lift plate bolts.
5. Install inner door belt weatherstrip.
6. Install door trim panel and water dam.
