Gearshift Boot - Removal

REMOVAL










1. Pull up on gearshift knob (1) with moderate force to remove from gearshift mechanism.

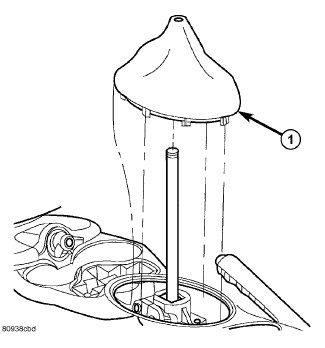

2. Remove shifter boot/bezel (1) assembly from console by lifting up at mounting ring area.
