Crossover Lever - Removal

REMOVAL

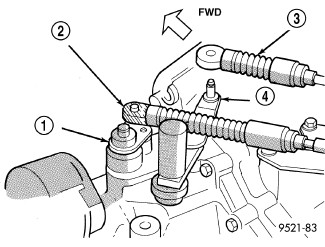

1. Disconnect crossover cable (2) from crossover lever (1) and cable bracket.
2. Using a pin punch, remove the crossover roll pin from lever (4).
3. Pull up and remove the crossover lever (4) from the transaxle crossover shaft.
