Crossover Shaft - Installation

INSTALLATION

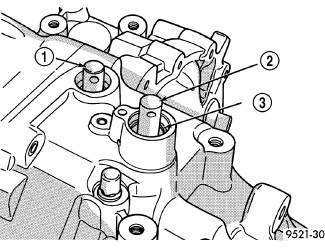

1. Install crossover shaft to case and install snap ring (3).
2. Install the crossover shaft seal.
3. Assemble transaxle.
