Transaxle Differential - Disassembly

DISASSEMBLY

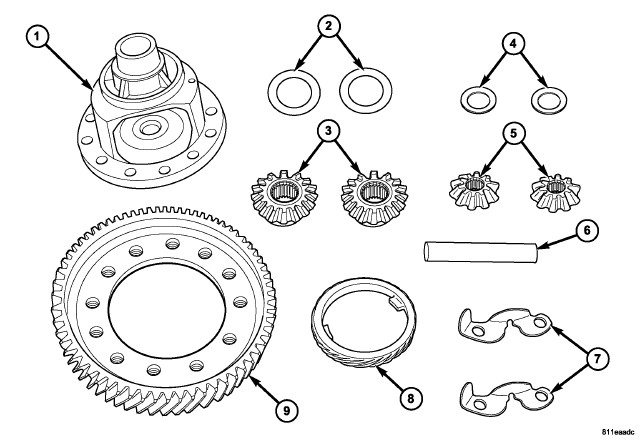

Refer to the exploded view as necessary when performing the following steps.

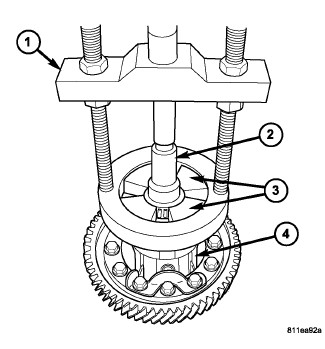

1. Remove differential bearing cones (ring gear and diff. case side) using Puller Press C-293(1), Adapter Blocks C-293-45 (3), and Adaptor 4996 (2).

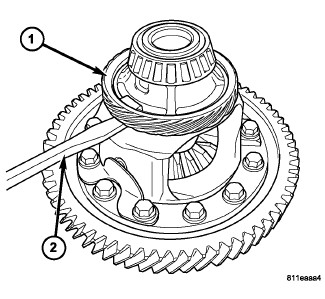

2. Using a suitable screwdriver (2), pry off and remove speedometer drive gear (1).

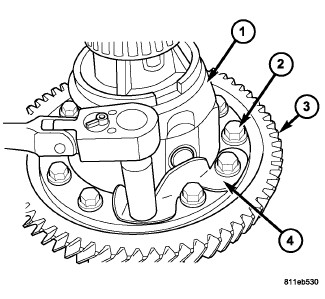

3. If servicing ring gear (3) as well, remove remaining ring gear-to-case bolts (2).

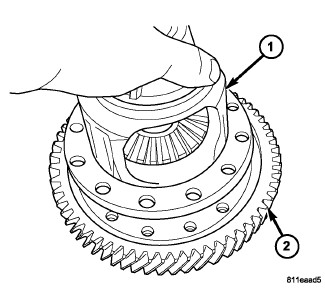

4. If servicing ring gear (2)as well, remove remaining ring gear-to-case bolts and remove ring gear (2) from case (1).

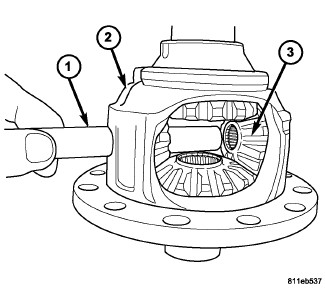

5. Remove pinion shaft (1).

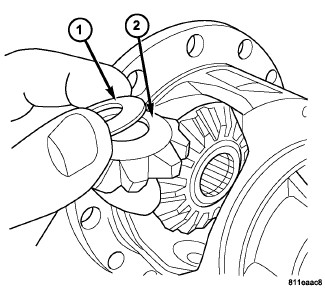

6. Remove pinion gear (2) and thrust washers (1).

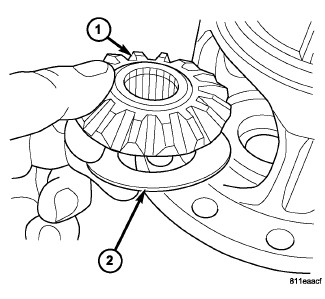

7. Remove side gears (1) and thrust washers.
