Shift Selector Shaft Bushing(s) - Removal






REMOVAL










1. Remove selector shaft using procedure.

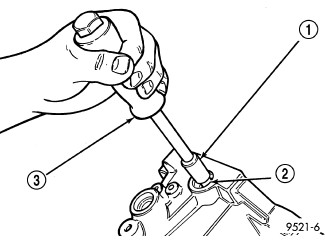

2. Thread Remover 6786 (1) into bushing.
3. Install slide hammer C-3752 (3) onto tool and remove bushing (2) using slide hammer.
