Output Bearing and Race - Removal

REMOVAL










CAUTION: The position of the output shaft bearing is critical. The bearing is not identical end-to-end. Install bearing with larger diameter cage ring facing out.

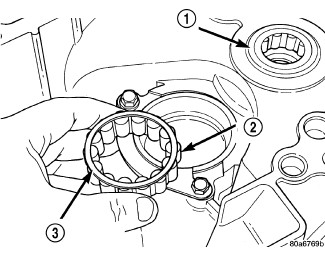

1. Remove caged roller bearing (3) from output bearing race.

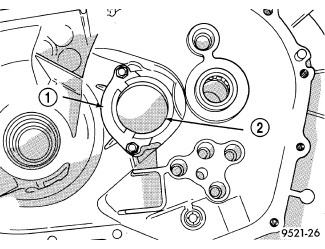

2. Remove screws at output bearing retainer strap (1).

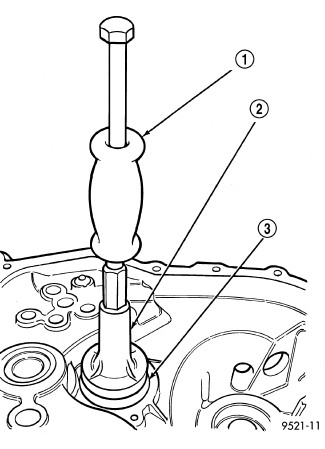

3. Install slide Remover 6787A and Slide Hammer C-3752 (2). Tighten tool to output bearing race.
4. Using slide hammer, remove output bearing race (3).
