Output Bearing and Race - Installation

INSTALLATION

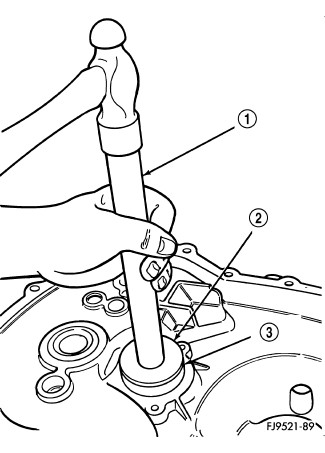

1. Line up output bearing race (3) to race bore.
2. Insert tool Installer 4628 (2) with Handle C-4171 (1) into output bearing race. Tap race into bore. Install output bearing into race. Verify that the larger diameter cage is facing outward. Position bearing retaining strap. Tighten bolts to 11 Nm (96 in. lbs.).
