Input Bearing and Sleeve - Installation

INSTALLATION










1. Apply coating of Loctite(R) sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.
2. Install Seal Remover C-4680-1 (1), over input bearing.

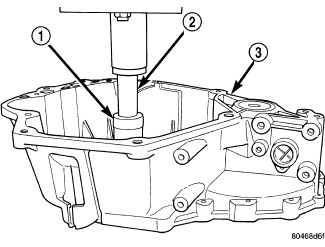

3. Using a suitable spacer tool and shop press, install input bearing (1) into bore until it is fully seated.
