Differential Bearing Cups - Removal

REMOVAL










1. Remove differential assembly from gear case (2) using the procedure outlined.

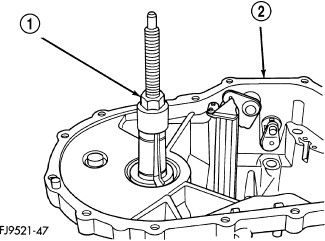

2. Install Miller tool #L-4518 (1) into the differential bearing cup.

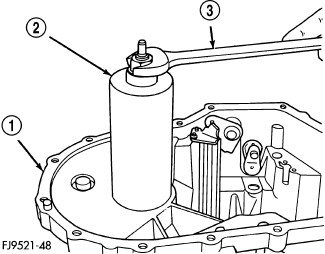

3. Install the tool cup over the tool.
4. Tighten the tool until the race is removed from the case.
